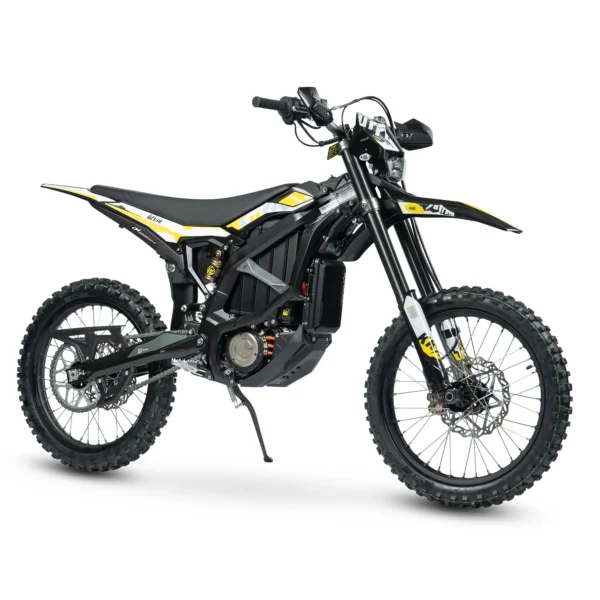

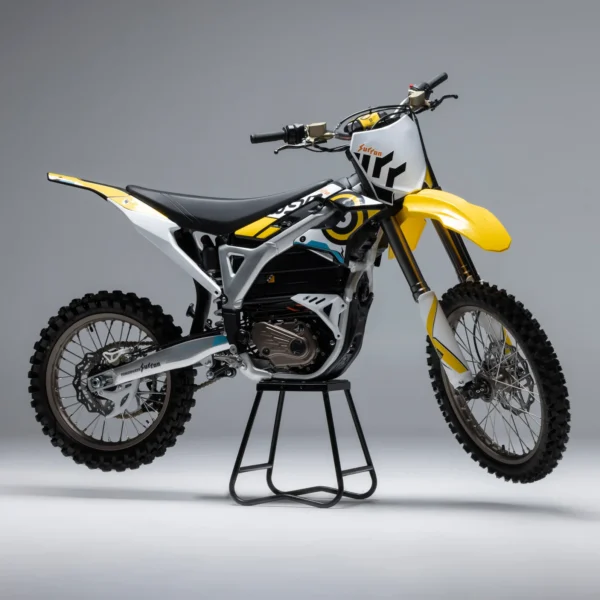

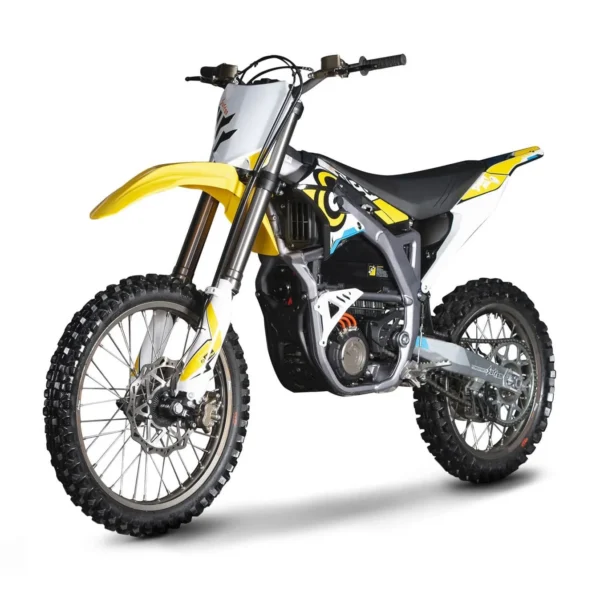

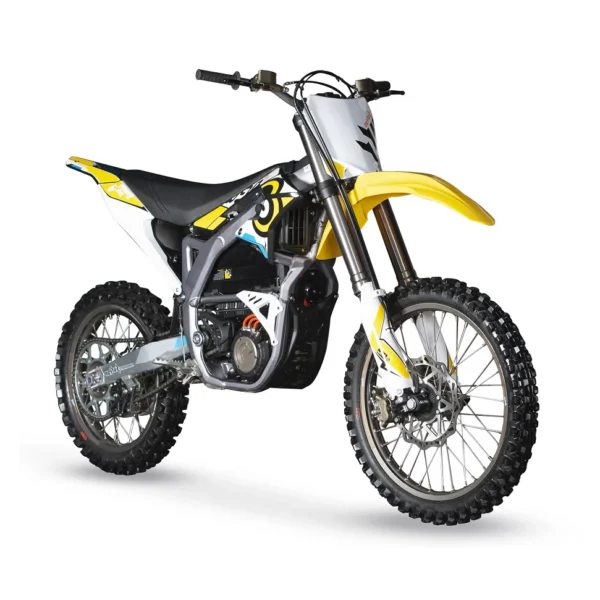

ULTRA BEE MX ELECTRIC DIRT BIKE

Here it is! The bike that everyone has been anticipating! The all NEW ULTRA BEE MX ELECTRIC DIRT BIKE  – Electric Dirt Bike – the worlds most favourite electric bike brand has done it again with this outstanding new model! The Ultra offers the answer to everyones prayers – more power, overall size increase and low weight plus some excellent new innovations!

ULTRA BEE MX ELECTRIC DIRT BIKE

Since the brand was introduction in 2016 it now boasts a suave global reputation and means fierce business and serious competition! It’s not hard to see why this world wide phenomenon is taking on the likes of the conventional petrol bikes fiercely – but take note this is by no means a street legal bicycle, this is strictly a private property use dirt bike.

Take to the trails with the Ultra Bee, which comes as standard with a 12.5KW Mid Motor which will output 440nm and achieve up to 90km/h with ease! Plus with some excellent innovations such as the built in charger storage compartment under the seat, traction control and much more! The Ultra makes for the perfect outdoor expedition, trail bike, farm bike or the weekend recreational rider, which with this said is an ideal bike for almost all ages.

Conquer all trails and more with ease o

ULTRA BEE MX ELECTRIC DIRT BIKE

n the Surron Ultra Dirt Bike with 4 Piston Brakes, a Removable and Swappable 55AH Battery with premium and a seriously lightweight Aluminium construction, this is a bike that is incredibly robust but also charges in record time with the included Fast Charger of 4hrs!

Ultra Bee Key Features:

• 74V – 55AH Lithium Battery
• Range of 140km (Cruising @40km/h)
• 12.5KW Motor with 440Nm of Torque
• Top Speed 90km/h
• Under seat charger storage

Important Note: Models are MX Models of which is strictly designed for OFF ROAD USE ONLY – NOT a Street Legal Bicycle by any means!

SURRON ULTRA BEE TECHNICAL SPECIFICATIONS

SPEED & RANGE

• Range >140km* (Cruising @40km/h)
• Top Speed 90km/h

BATTERY

• 74V / 4,070Wh, 55AH Lithium cells.
• Battery is removable and can be charged in bike or separately.
• Battery Life of up to 1,500+ Charge Cycles (battery can maintain state of health over 80% when 1,500 cycles is achieved)

RIDE MODES

• Mode 1 ECO: The ultimate mode energy conservation exploration
• Mode 2 Daily: For Optimised balance of cruising and performance
• Mode 3 Sport: Maximum torque, acceleration and speed
• Mode 4 Reverse: Reverse Function – Limited Speed

FEATURES

• STCS Surron Traction Control System
• BERS Braking Energy Regeneration System
• Hill Ability Up to 80%+ Inclines
• Horn Included
• USB Port Included
• Lights Front LED (Indicators & Rear Brake/Tail Light’s Only on Road Models)
• Fenders Yes (Number Plate Mounts Only on Road Models)
• Cooling System Air Cooled
• Warranty 1 Year

BRAKES

• Bilateral 4 Piston Hydraulic 240mm Disc
• EABS Fully Adjustable Electric Regenerative Braking

CHARGING

• 4hrs with Fast Charging

DISPLAY

• LCD Multi-Function (ODO, Trip, Battery, Speed, Top Speed etc)

CONTROLLER

• FOC Sine Wave Controller

DRIVETRAIN

• Electric Motor Permanent Magnet Synchronous (PMSM)
• Transmission Belt and Chain
• Peak Power 12.5 kW
• Max Torque 440 N·m
• Throttle Fly by Wire Twist

CONSTRUCTION

• Frame Forged Aluminium Frame
• Handlebars 6061 aluminium, 880mm length

SUSPENSION

• Front KKE 37mm Inverted Fork with 240mm travel
• Rear KKE with 240mm wheel travel

WHEELS & TYRES

• MX Models Front 80/100-19 Rear 90/90-19 with CST Mud Tyres
• Road Models Front 90/90-19 Rear 120/80-18 with CST All Terrain Tyres

DIMENSIONS

• Overall (MX Models) 2,010 x 880 x 1,178mm
• Overall (Road Models) 2,060 x 880 x 1,178mm
• Seat Height 910mm
• Ground Clearance 318mm
• Wheel Base 1,380mm

WEIGHTS

• Curb Weight 85kg (MX Models) 93kg (Road Models)
• Battery Weight 20.2kg
• Max Loading 100 kg

INCLUSIONS

• In the Box 1x ULTRA BEE MX ELECTRIC DIRT BIKE, Fast Charger, Front Plate, Front Guard, 2 Surron bikes Keys & Manual

*Disclaimer – Range achievable varies on ride conditions, loading, motor use and many other factors. Range Calculations should be used as a guide only and are based off consistent travel at low speed in ideal conditions.

WARRANTY INFORMATION

Here, Quality and Assurance means a thousand words, that’s why we stand behind all our products with our extensive World Wide Warranty!

Warranty Periods:
– 2 Year’s on 2024 and 2025 Bikes (1 Year on Batteries) Sold from December 1st 2024 onwards
– 1 Year on Pre 2022 Bikes
– 3 Month’s on any Parts & Accessories

SRTC RIDE MODE

Featured across all the Ultra Bee range, the Surron Traction Control System (SRTC) is the latest multi-condition off-road traction control system. SRTC has three rider selectable settings controlled by just one button, giving the rider the ability to find the optimal control in any off-road condition.

ADJUSTABLE FORK

Featuring a newly innovated suspension system with 240mm travel providing a wide range of adjustability for maximum safety and comfort while riding on both dirt roads and street. The unique chassis design and steering bump stops provides more protection from damage in the event of a fall.

FORGED CHASSIS

The ultra light aluminium forged chassis is a compact structure that lowers the center of gravity, delivering an unmatched precision lightweight handling experience to riders.
