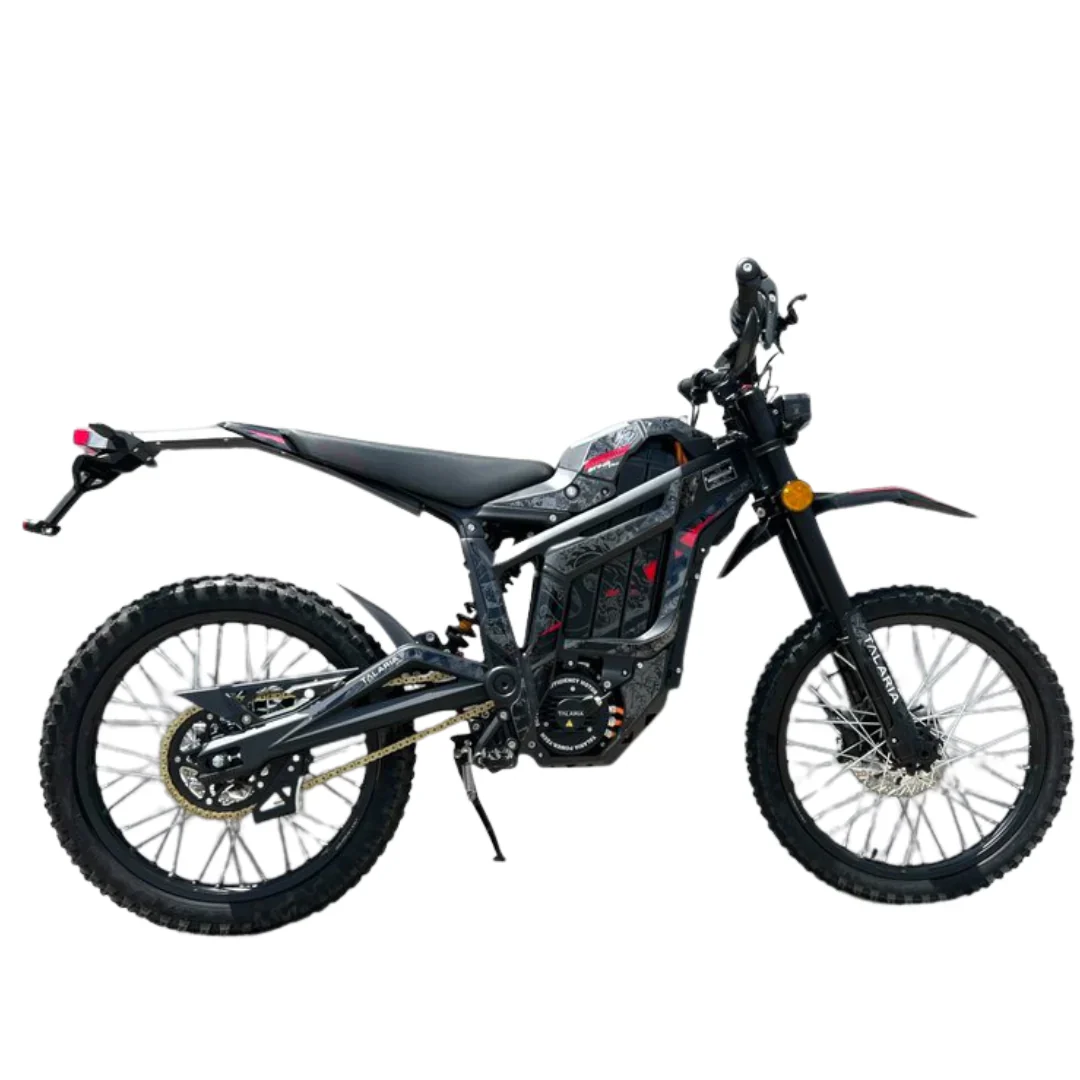

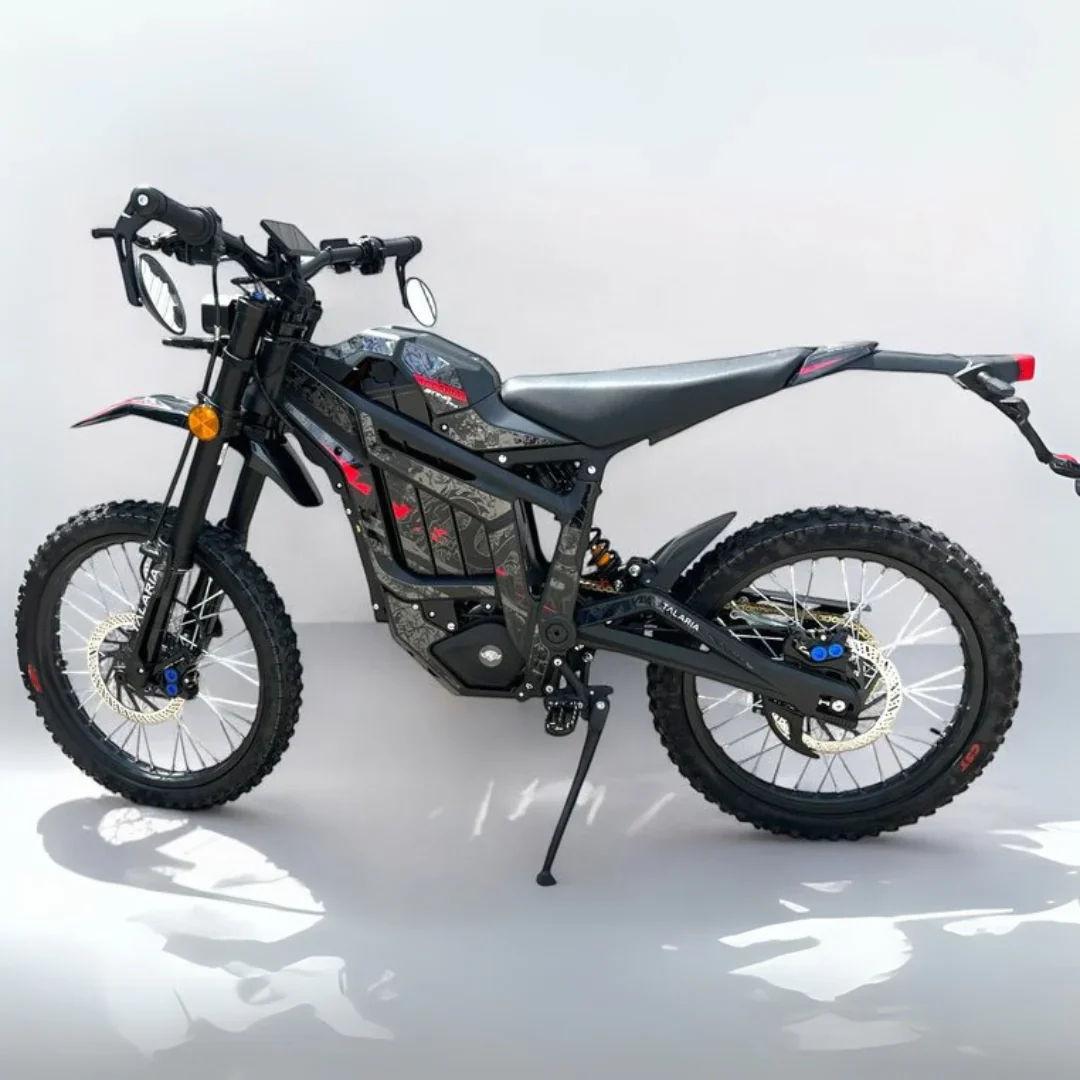

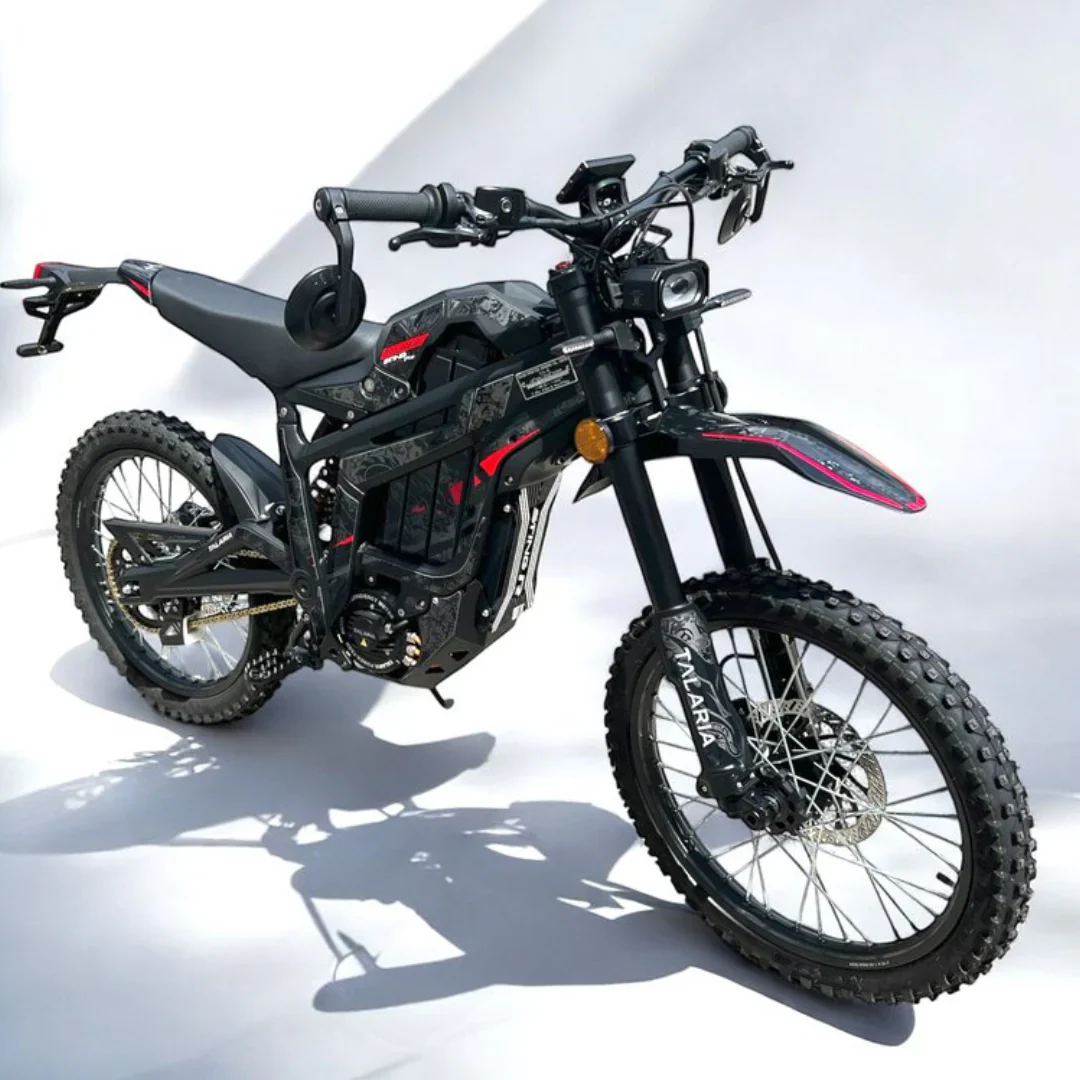

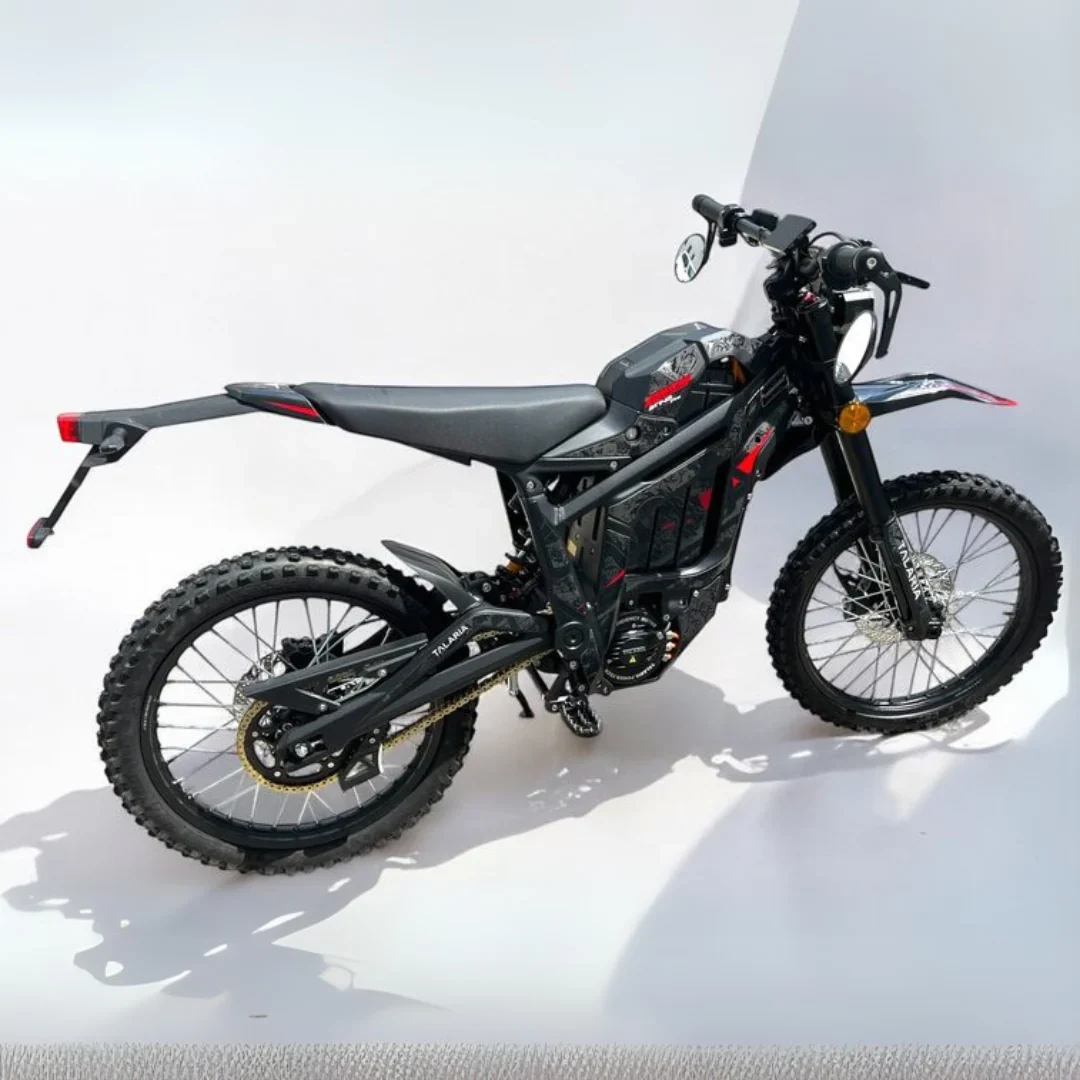

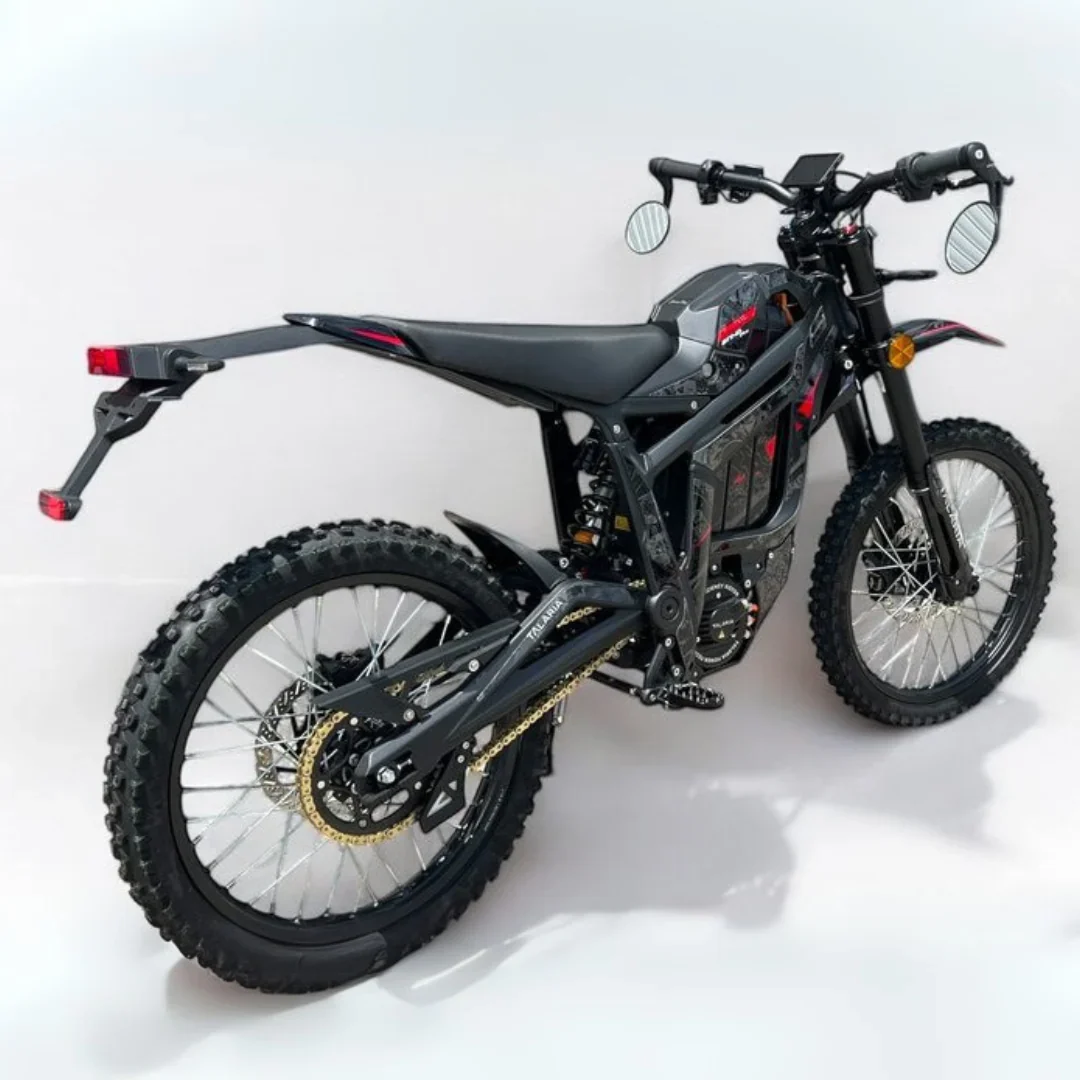

Talaria Sting Pro MX5 L1E TL5500 Electric Bike (Road Legal)

Talaria Sting PRO MX5 L1E – Unmatched Power & Performance

The road-legal Talaria PRO MX5 L1E features a 72V/40Ah battery, delivering high torque, fast acceleration, and top performance on and off-road.

Talaria Sting Pro MX5 L1E TL5500 Electric Bike (Road Legal)

KEY FEATURES & SPECIFICATIONS

Talaria Sting Pro MX5 L1E TL5500 Electric Bike (Road Legal)

Powertrain (Motor & Controller)

• MOTOR TYPE: AIR-COOLED IPM (INTERIOR
  PERMANENT MAGNET)
• CONTROLLER TYPE: FOC
• NOMINAL VOLTAGE: 72V (DC)
• NOMINAL POWER: 5500W PEAK POWER: 8.5KW
• PEAK TORQUE: 55N.m
• TORQUE ON REAR WHEEL: 500N.m (48T
  Sprocket)
• PEAK EFFICIENCY: 92%

Transmission

• GEAR RATIO: 9.1 (48T Sprocket)
• Ist TRANSMISSION MODE: GEARBOX
• 2nd TRANSMISSION MODE: CHAIN
• ELECTRONIC COMPONENT BATTERY PACK: 72V / 40Ah / 208/8P
• BATTERY CELL: SAMSUNG 50S 21700 Cell
• DASH: LED MULTI-FUNCTION DISPLAY REGEN ADJUST USER ADJUSTABLE
• RIDING MODES: ECO / SPORT / HYPER

Talaria Sting Pro MX5 L1E TL5500 Electric Bike (Road Legal)

Vehicle

• CHASSIS MATERIAL: NO. 6061 T4 & T6 ALUMINUM ALLOY
• CHASSIS PROCESS METHOD: ALUMINUM PROFILE EXTRUSION & FORGED
• HEADLIGHT: LED
• FRONT FORK: DUAL SPRING WITH PRELOAD/AIR/COMPRESSION/REBOUND ADJ
• REAR ABSORBER: SPRING WITH PRELOAD / COMPRESSION / REBOUND
• TIRE BRAND & SIZE: CST BRAND, FR.: 70/100- 19; RR.: 80/100-19 OFF-ROAD
• TOP SPEED: 45KM/H
• MAX. RANGE: 268KM @ 45KM/H
• N.W: 78KG (BATTERY INCLUDED)
• VEHICLE DIMENSION: 1890MM x 815MM x 1155MM
• SEAT HEIGHT: 840MM
• WHEELBASE: 1250MM HANDLE BAR WIDTH: 760MM MIN. GROUND
• CLEARANCE: 280MM
• MAX GRADEABILITY: 45°
